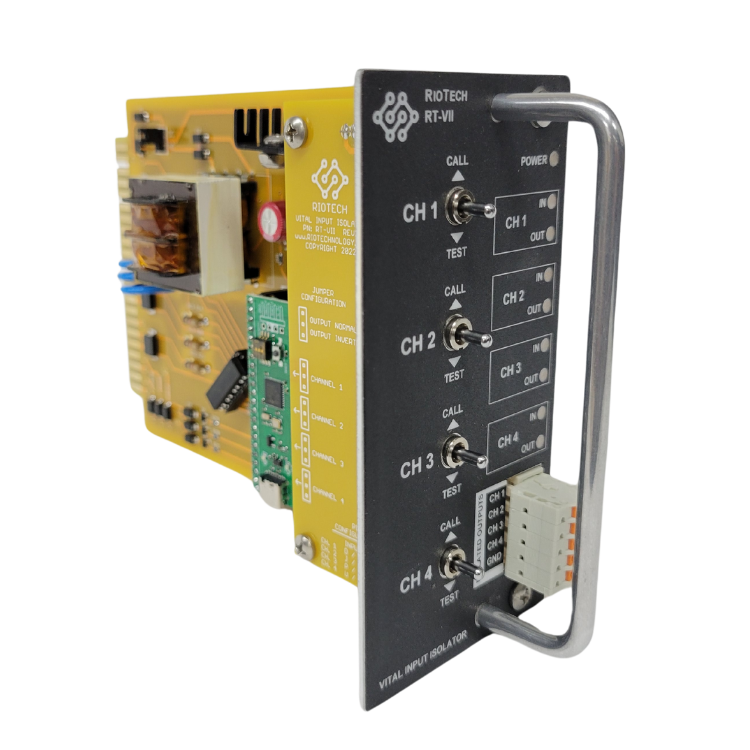

Meet Riotech’s x-VII™

Call 817.886.8210 to incorporate the x-VIITM Vital Input Isolator Module into your highway-rail grade crossing applications today.

Key Features

  • Supports 4 isolated channels

  • Flexible power source accommodates both DC only and AC supported input file rack

  • External operational test switches

  • Front and rear facing I/O ports

  • Installs in existing input file rack

  • Provides isolated conversion from railroad circuitry to traffic signal logic levels

  • Dual voltage 24 V dc or 120 V ac with self-supplied 24 V dc power supply for standalone operation

  • Inputs are non-polar for easy system wiring

  • Internal self-checks to guarantee logic functionality

  • Each isolated channel provides an output referenced to controller logic ground and an additional

  • isolated output referenced to isolated ground

  • Signals can be inverted with use of configuration jumpers

Technical Specifications

Power:

  • 120 V ac or 24 V dc

  • Self-supplied 24V dc to module rack system at 200 mA MAX

Inputs

  • 4 isolated inputs

  • 6-30 V ac-dc (non-polar)

Outputs:

  • 4 logic ground true outputs (rear) at 500 mA MAX

  • 4 optical isolated ground true outputs (front)

  • Overvoltage protection up to 30 V dc

Temperature:

  • -40 to 185ºF (-40 to 85ºC)

Physical:

  • Length - 2.32 in (58.9 mm)

  • Height - 4.5 in (114.3 mm)

  • Depth - 6.87 in (174.62 mm)

Mounting:

  • x-RPS Smart Rack

  • Input file of existing rack (Caltrans specification)
